Sewage Air Valves

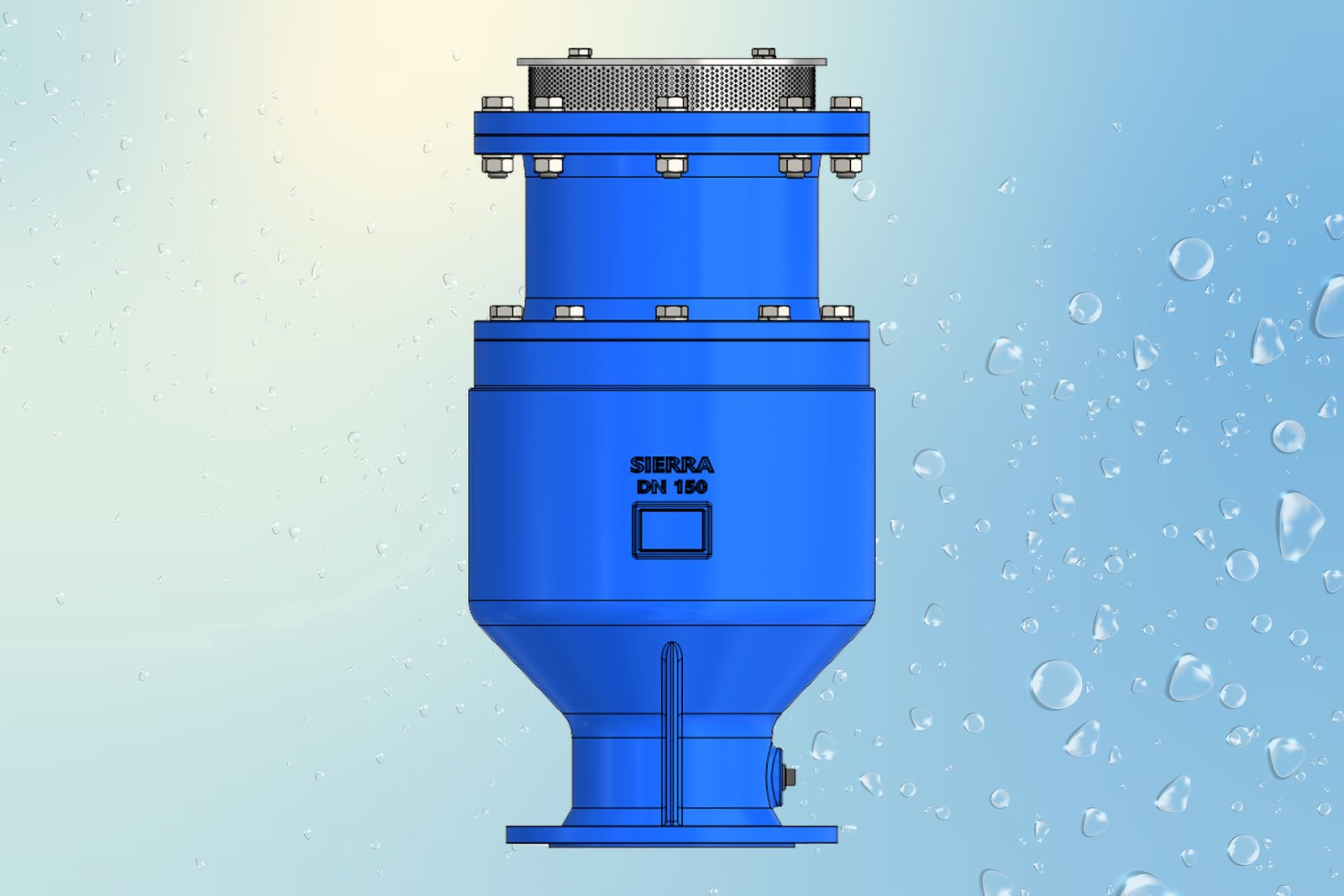

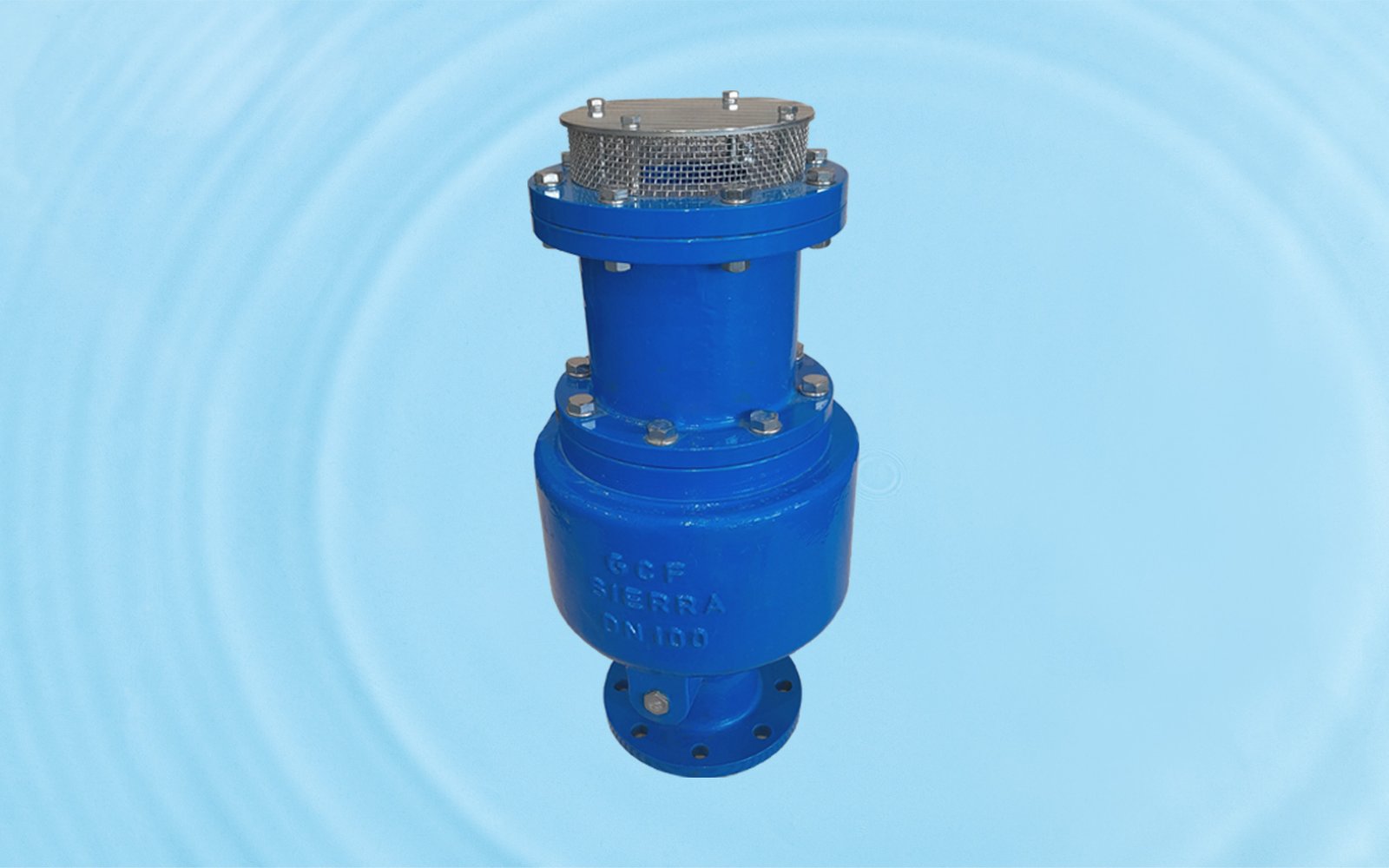

Sierra sewage air valve series 6600-PP Are Hydromechanical devices designed to automatically release or admit air during pipeline filling, draining, or operation of a water pipeline or system. The safe operation and efficiency of a pipeline are dependent on the continual removal of air from the pipeline.
Four Function Air Valves
- Discharge large volumes of the pipeline to atmosphere during pipe filling. (Atmospheric Function)
- Entrance of large volumes of air to the pipeline during pipeline drainage during washout conditions. (Atmospheric Function)
- Discharge small volumes of air during pipeline operation under pressure, preventing accumulation and formation of air-pockets during pipe-line operation. (Pressurized Function)
- Limiting of the air flow velocity during discharge condition when uncontrolled or high velocity pipeline filling, this causes an air-cushion in the pipeline, lowering high speed of water running which follows air, reducing the risk of induced impact (surge) and maintain safe closure of the main float.
Design Features
- Large lower body designed with strongly sloped funnel shaped walls to avoid deposit of grease or other material, and containing four ribs obtained by casting to guide the stainless-steel float.
- Upper body containing a casing that protects the air release device against spurts during rapid filling.
- Maintenance can be easily performed from the top without removing the air valve from the pipe.
- Mobile block including a large AISI 316 stainless steel float, placed on the lower body, and connected through a stainless-steel stem to the air release system.
- Internal body guide and upper round wall keep float moving on its rail and keep liquid turbulence flow within this area
Material Standards

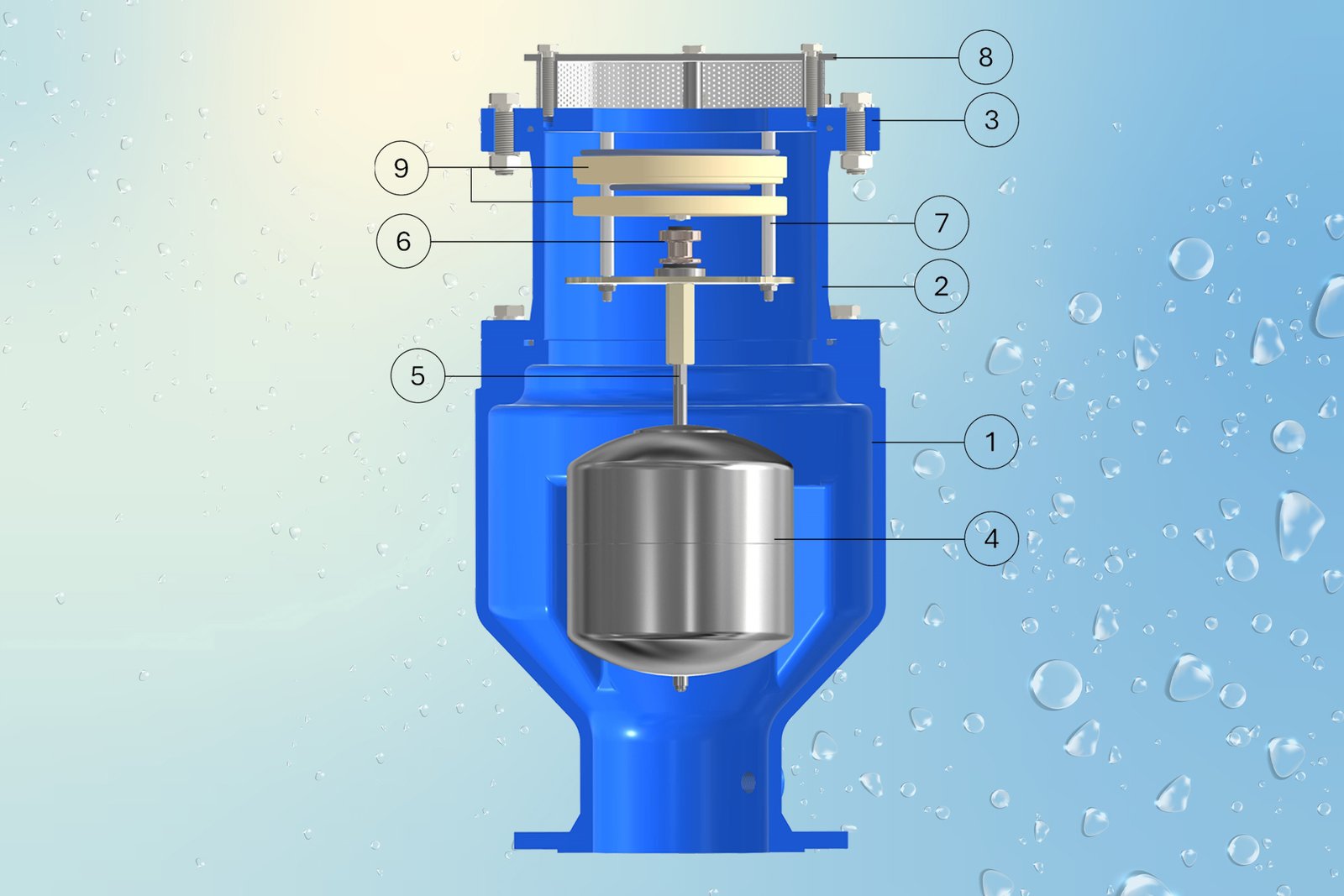

1,2,3. Body, Middle part, and Cover ——– Ductile Iron EN-GJS-500/7 Or Ductile Iron EN-GJS-400/12 Acc. To (EN1563)
4. Main Float ——– Stainless Steel Grade 316
5. Small Nozzle (Orifice) Mechanism ——– Stainless Steel Grade 316
6. Upper float Guide ——– Stainless Steel Grade 316
7. Screen ——– Stainless Steel Grade 316
8. Floats ——– Polypropylene
